Aruba Instant On AP25 Indoor Access Point (Wi-Fi 6 4x4 RW R9B28A)
Aruba Instant On AP25 Indoor Access Point (Wi-Fi 6 4x4 RW R9B28A)

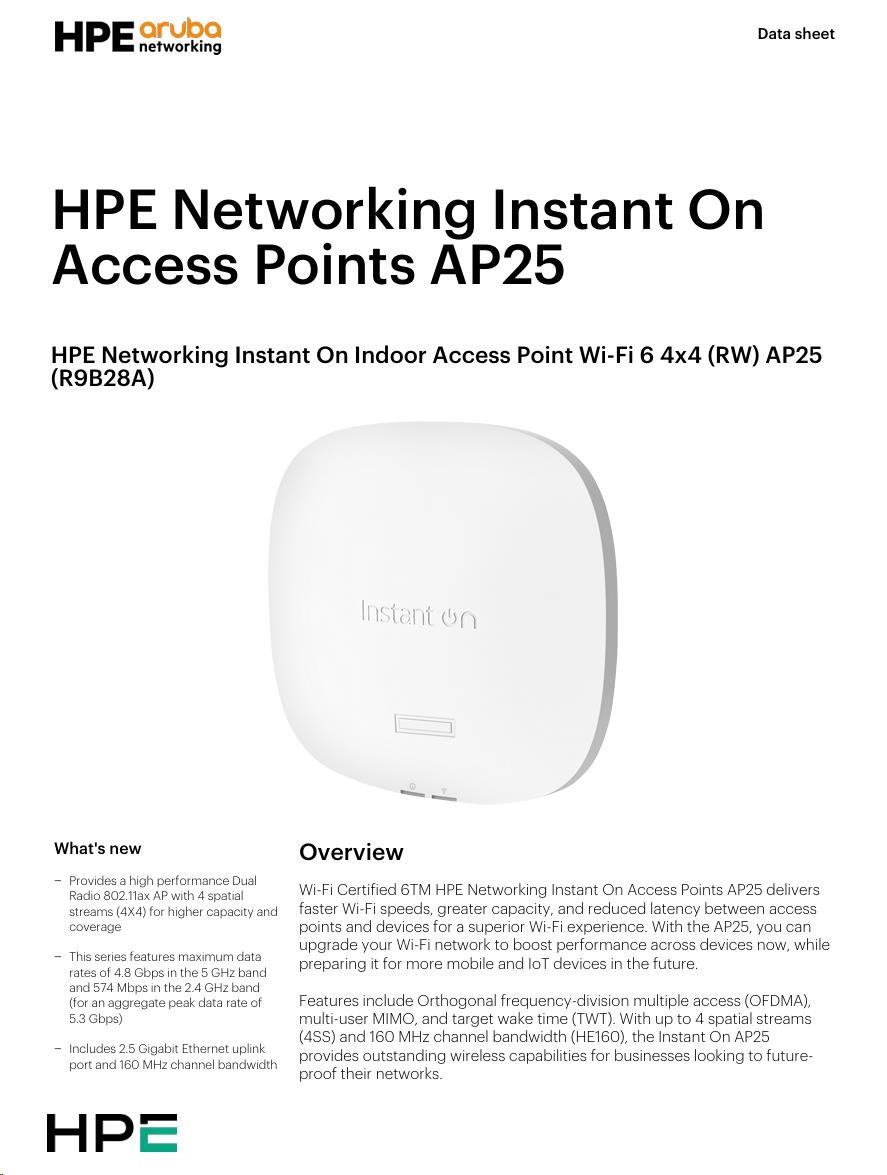

HPE Networking Instant On Indoor Access Point Wi-Fi 6 4x4 (RW) AP25 (R9B28A)
Model: Instant On AP25
Podporované frekvence:
- 2.4 GHz
- 5 GHz
Bezdrátový datový přenos: 4,8 Gbps
Drátový datový přenos: 2,5 Gbps
Podporované standardy:
- 802.11b
- 802.11a/g
- 802.11n
- 802.11ac
- 802.11ax
Porty: 1x LAN port
Šifrování: WPA3, WPA2-MPSK
Typ antény: Všesměrová
Podpora externí antény: Ne
PoE: Ano
Rozměry: 200 x 200 x 45 mm
Hmotnost: 775g
| Ultra-high-speed performance for high-density small businesses. Perfect for gaming, boutique hotels, tech start-ups and professional offices. The rise of the remote and hybrid workplace has placed increased pressure on business networks. Existing Wi-Fi infrastructure is struggling to support the explosion of devices and bandwidthhungry applications - all contributing to spotty video calls and sluggish download speeds. The Aruba Instant On AP25, a 4x4 Wi-Fi 6 access point, is designed to meet the increasing volume of connected devices. Delivering superior performance, coverage, and speed at a competitive price, the AP25 is the perfect access point for small and growing businesses. The Wi-Fi Certified 6TM AP25 delivers faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. AP25 improves efficiency and reduces congestion for networks with many connected devices, making it ideal for high-density environments. And with 4x the capacity of 802.11ac access points, the AP25 provides exceptional user experience, allowing businesses to serve more customers with higher speed and less congestion. Features of the AP25 include orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and target wake time (TWT). With up to 4 spatial streams (4SS) and 160MHz channel bandwidth (HE160), the AP25 provides groundbreaking wireless capabilities for businesses looking to boost performance and future-proof their networks. |
| Key Features
|
Standard Features

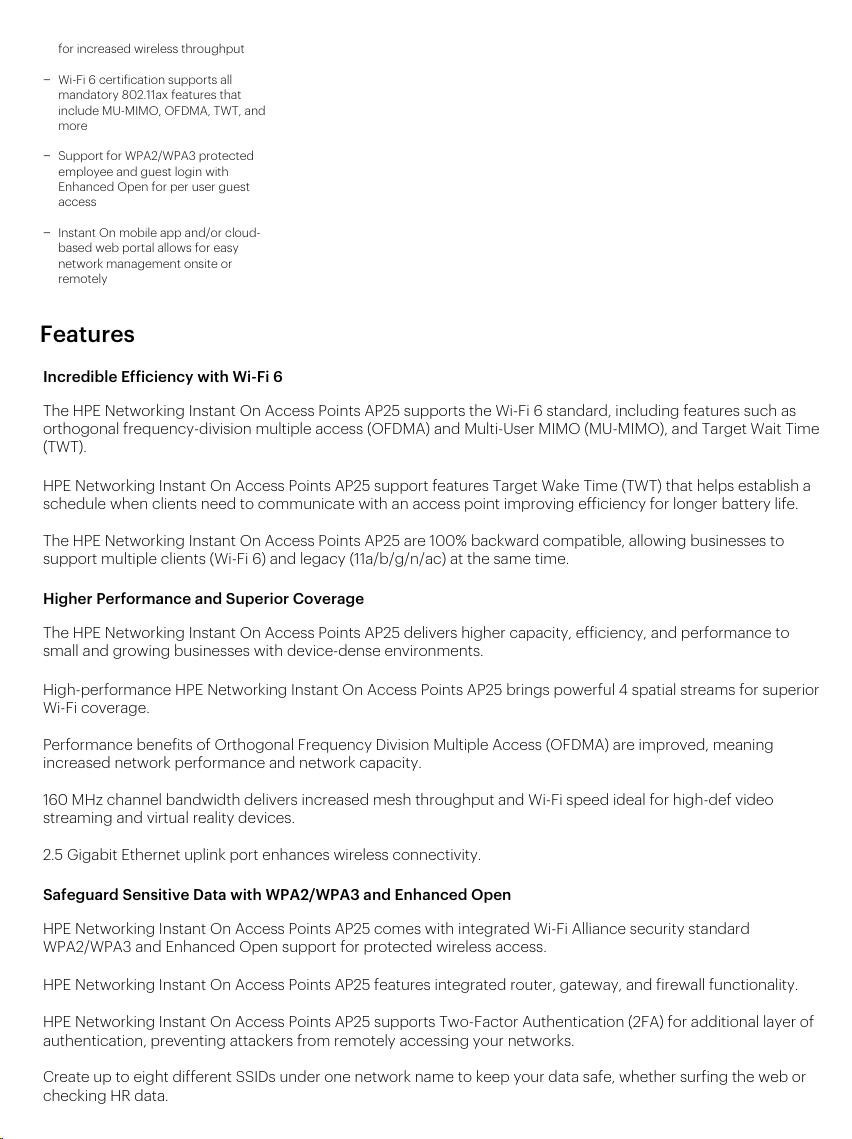

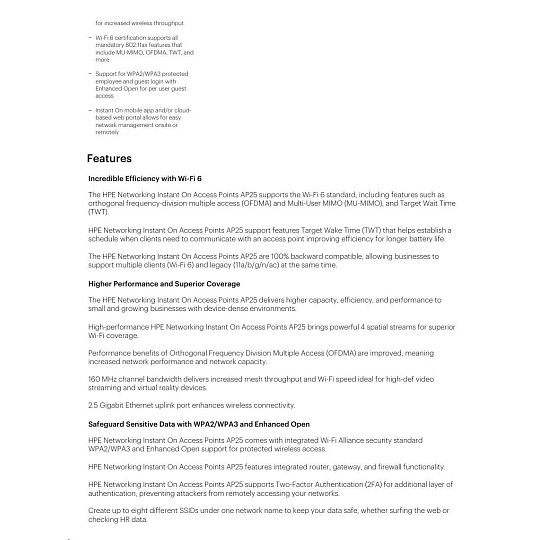

| Next-Generation 802.11ax Wi-Fi Features AP25 is a Wi-Fi CERTIFIED 6TM (Wi-Fi 6) access point that brings higher capacity, efficiency, and performance to small and growing businesses with dense deployments. With a maximum aggregate data rate of 5.3 Gbps, AP25 access points deliver the speed and reliability small businesses need. 2.5g Ethernet Uplink Port And 160mhz Client Bandwidth Support Availability of 2.5G uplink port and wider channel bandwidth delivers faster Wi-Fi speeds for activities like high-def video streaming and gaming. 160mhz Client Bandwidth Support With 160MHz bandwidth support in 11ax, HE160 mode delivers higher performance with 160MHz supported clients. The mesh performance can be doubled with the 160MHz bandwidth support on 5GHz backhaul. Orthogonal Frequency-Division Multiple Access (OFDMA) Allows access points (APs) to handle multiple Wi-Fi 6-capable clients on each channel simultaneously - regardless of device or traffic type. This improves efficiency by boosting overall capacity while reducing latency. Target Wake Time (TWT) Ideal for devices that communicate infrequently, TWT establishes a schedule for clients to communicate with an AP. This helps reduce power consumption, extending battery life.
Multiuser, Multiple Input, Multiple Output (MU-MIMO) AP25 supports MIMO, allowing service to multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time. 1024-Quadrature Amplitude Modulation (1024-QAM) Enables a 25% data increase over 256 QAM, improving throughput to access points and devices. Trusted Platform Module (TPM) All Aruba Instant On access points have an installed TPM for secure storage of credentials, keys, and boot codes. Basic Service Set Coloring (BSS Coloring) Allows the network to assign a "color" tag to a channel and reduce the threshold for interference. Network performance is improved because APs on the same channel can be closer together and still transmit at the same time. Aruba Advanced Cellular Coexistence (ACC) Uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small-cell or femtocell equipment. Low Density Parity Check (LDPC) Delivers high-efficiency error correction for increased throughput. Transmit Beamforming (TXBF) Delivers increased signal reliability and range. |
| The Instant On Differentiators The Aruba Instant On App Manage everything through our official app on the device of your choice. Manage your network from anywhere, anytime - all from the palm of your hand. Built-In Security Gateway/Firewall Stop unwanted people and bots from accessing the network. Leverage advanced features that do not require external gateways - or the complexity that comes with them. Quickly and easily swap it out with another AP in a single click, in case of gateway failure. The new Cloudflare integration provides private and fast web browsing. The 802.11k standard improves roaming performance helping clients connect to nearby APs quickly. Better Together Instant On automatically detects and applies highest (critical) PoE priority to Instant On access points for uninterrupted power delivery and wireless network access. Wired and wireless voice traffic is prioritized with high QoS priority end-to-end for optimal voice performance. Tailored User Experiences Customize guest Wi-Fi experience with logos, authentications, and rules of use. Set data usage per app. Limit duration of use. Use an external portal or service like Facebook Wi-Fi. Create open guest networks for quick and easy access. With the Instant On mobile app, you can apply bandwidth limits for your clients or your network for prioritizing certain primary networks.
Enterprise Grade Wi-Fi And Features Control channel and channel width to suit specific environments. Keep users happy as they move between spaces or meetings with a seamless handoff between APs. Protect users with the robust password-based authentication that WPA3/WPA2 wireless security standard provides. Instant On supports OWE for secure, open Wi-Fi network access at cafes, retail stores and restaurants. Site Inventory and Topology View The site inventory view lists all the Instant On switches and access points on a single interface, and the topology view provides an intuitive structure of all Instant On devices deployed in a network - helping to quickly identify non-functioning devices and troubleshoot accordingly. Network issues can be easily diagnosed with connectivity tests like Ping and Traceroute. Two-Factor Authentication (2FA) As the number of security breaches continue to rise, 2FA has become an essential tool to mitigate risk against compromised login credentials. Two-Factor Authentication (2FA), provides an additional layer of authentication, prevents attackers from remotely accessing your network, and secures your customer information. Multi-Site Management Manage multiple sites, multiple networks, distributed deployments, and multi-tenancy deployments with ease through our cloud-hosted web interface and mobile app. Create unique configurations, statistics, guest portals, and admin read/write for every site. Instant On allows three admin accounts per site, offering an option to lock accounts to prevent them from accidental deletion. PPPoE and Static IP Instant On APs can act as routers and handle PPPoE configuration with VLAN support, and they can also act as a DHCP server, providing IP addresses to the wireless network. Assigning a static IP address on an access point allows users to use the same IP address regardless of where the access point is connected, making it easier to access its setup page for any configuration changes. Smart Mesh Extend coverage to hard-to-reach spaces where Ethernet cabling may not exist. Set up a mesh network up in minutes through the app - indoors or out. 5-Star Voice and Video Quality Keep users connected via softphones and mobile apps. Automatically detect and prioritize voice and video applications such as Skype, FaceTime, and WeChat that use SIP, SCCP and other popular protocols. No Hidden Fees All features are included in the price of the hardware - there are no recurring subscription or licensing fees. Expert-level support and industry-leading 2-year warranty are also included, along with chat support for the life of the product. |

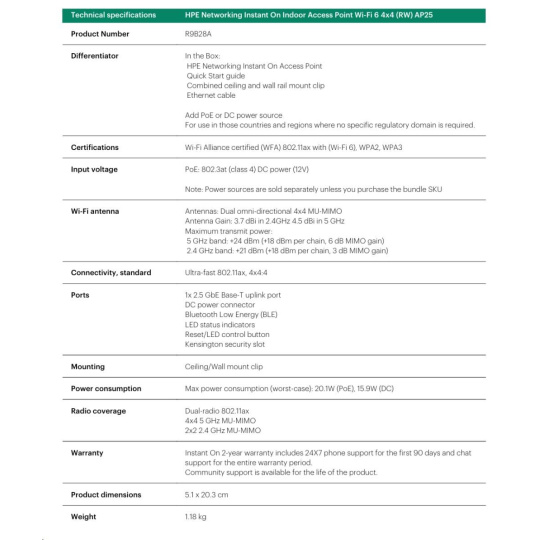

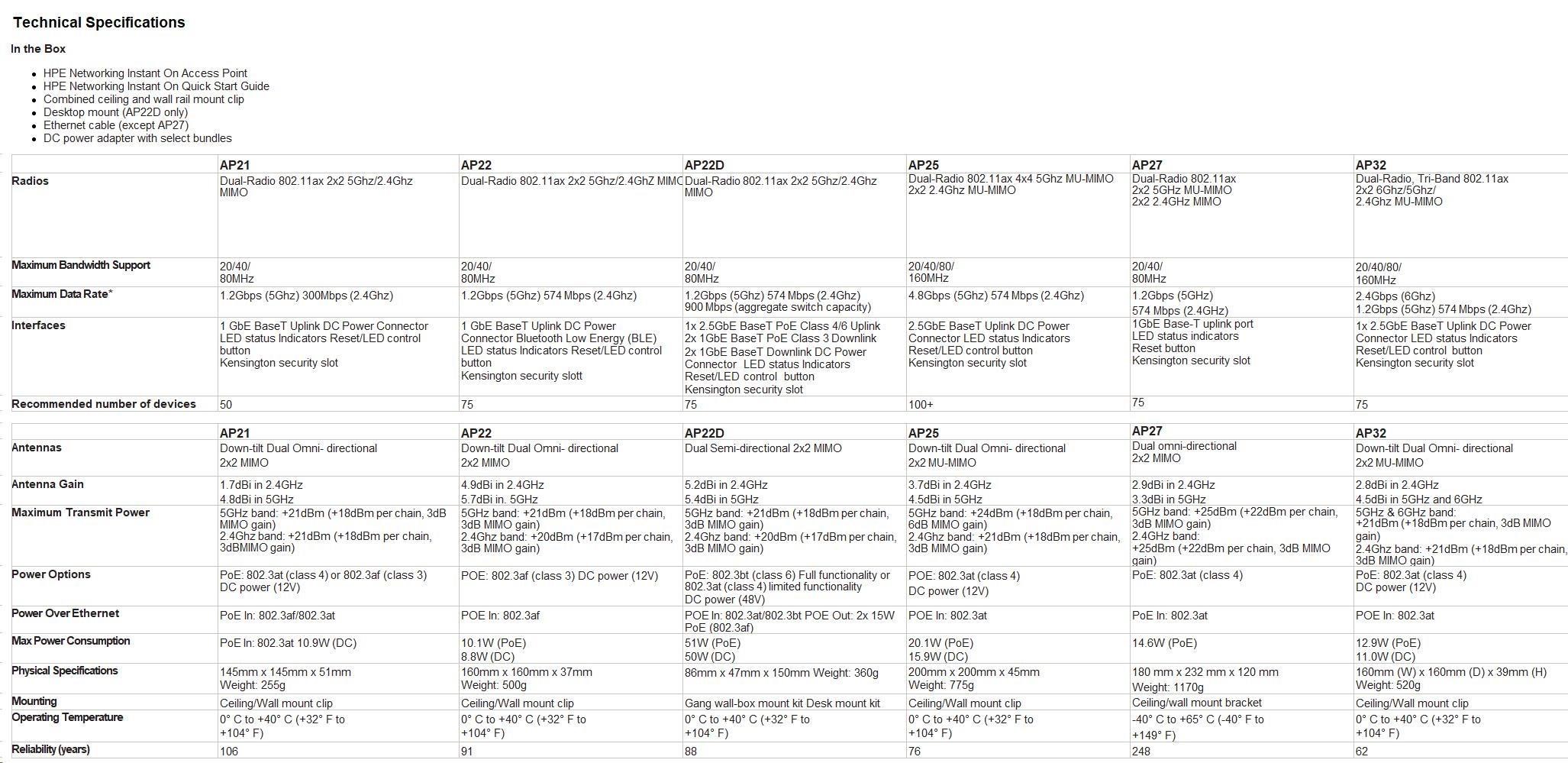

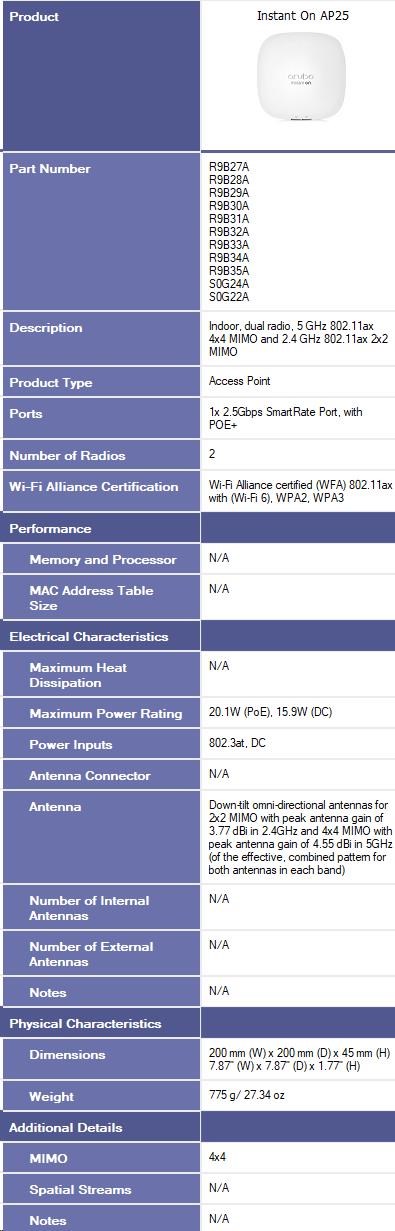

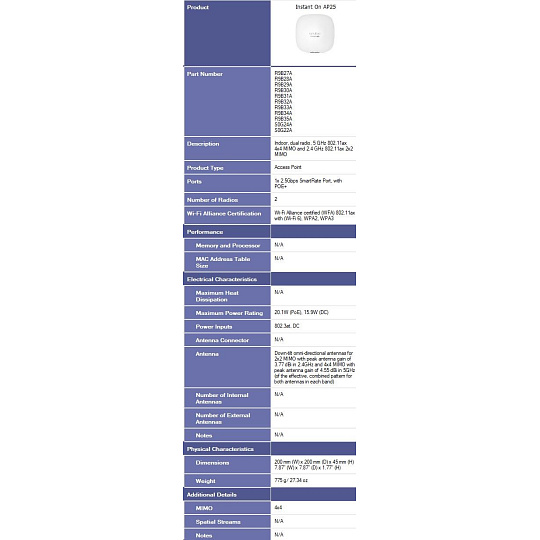

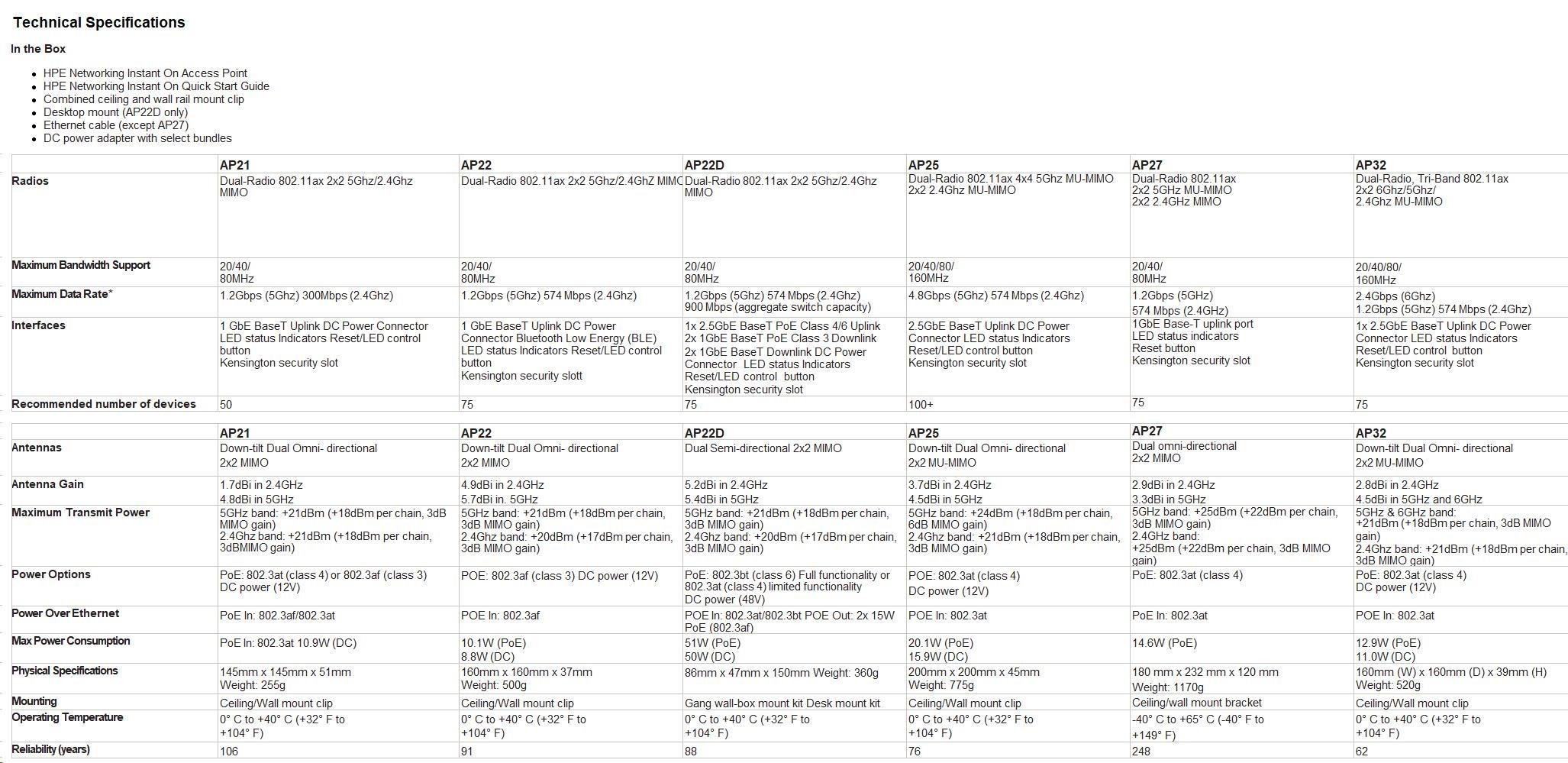

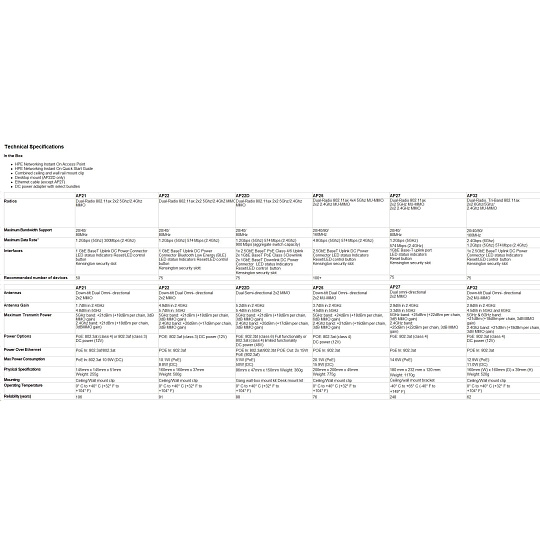

Technical Specifications
| In the Box
|
| Radios
|
| Maximum (Aggregate, Conducted Total) Transmit Power (Limited By Local Regulatory Requirements)
|
| Interfaces
|
| Physical Specifications
|
| Power
Notes: Power sources are sold separately unless you purchase the bundle SKU which comes with power options. |
| Antennas
|
| Mounting
|
| Environmental & Reliability
|
| Industry Certifications
|
| Management Options
|
| Warranty & Support
|
HPE Networking Instant On AP25 (R9B28A) Indoor Wi-Fi 6 Access Point — 4x4 MU-MIMO — Product Number: R9B28A
What’s in the box
- HPE Networking Instant On Access Point (AP25)
- Quick Start guide
- Combined ceiling and wall rail mount clip
- Ethernet cable
- Note: PoE or DC power source sold separately unless purchased as a bundle SKU
- For use in countries/regions where no specific regulatory domain is required
Certifications & Security
| Certifications | Wi-Fi Alliance (802.11ax / Wi-Fi 6), WPA2, WPA3 |
|---|---|
| Regulatory Notes | Region-dependent regulatory domain; this SKU is for regions with no specific regulatory domain |
Warranty & Support
| Warranty | Instant On 2-year warranty |
|---|---|
| Phone Support | 24×7 phone support for first 90 days |
| Chat Support | Chat support for full warranty period |
| Community Support | Available for the life of the product |
Power & Consumption
| Input Voltage | PoE: 802.3at (Class 4); DC: 12V |
|---|---|
| Power sources | Sold separately unless bundle SKU purchased |
| Max Power Consumption | 20.1 W (PoE) — 15.9 W (DC) |
Wireless & Radio
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), Ultra-fast 4×4:4 |
|---|---|
| Radios | Dual-radio 802.11ax — 4×4 MU-MIMO (5 GHz), 2×2 MU-MIMO (2.4 GHz) |
| Antenna | Dual omni-directional — 4×4 MU-MIMO |
| Antenna Gain | 2.4 GHz: 3.7 dBi · 5 GHz: 4.5 dBi |
| Max Transmit Power | 5 GHz: +24 dBm (+18 dBm per chain, 6 dB MIMO gain); 2.4 GHz: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) |
| Radio Coverage | Dual-band coverage, optimized for high-density and throughput |

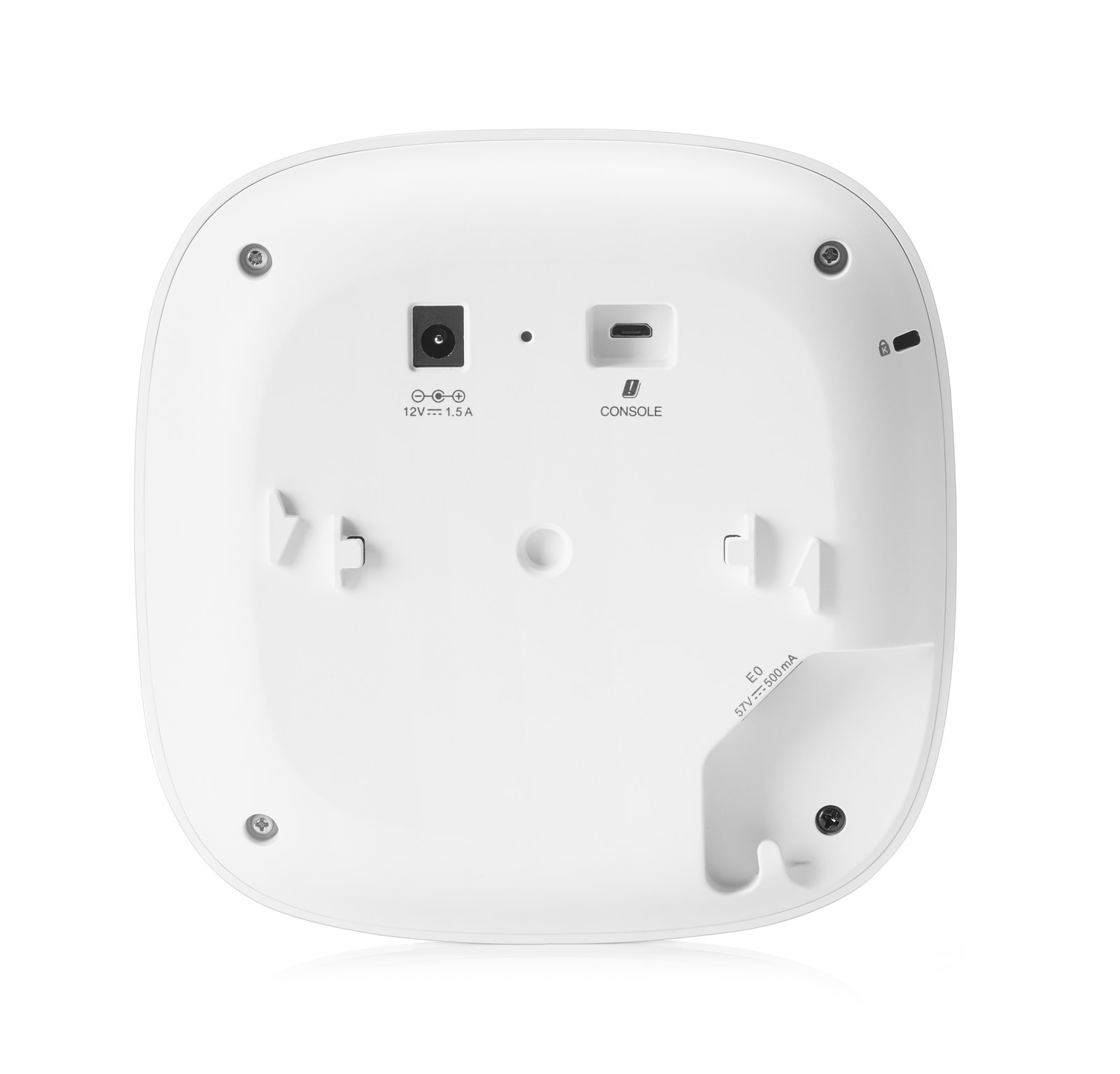

Ports & Features

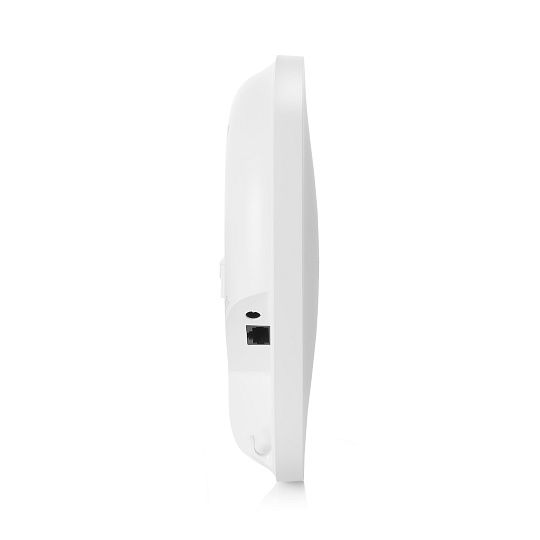

| Uplink Port | 1× 2.5 GbE Base-T |
|---|---|
| Other Ports | DC power connector |
| Wireless | Bluetooth Low Energy (BLE) |
| LEDs & Controls | LED status indicators; Reset / LED control button |
| Security | Kensington security slot |
| Mounting | Combined ceiling/wall rail mount clip (included) |
Mechanical
| Dimensions | 5.1 × 20.3 cm |
|---|---|
| Weight | 1.18 kg |
