Club3D Adaptér aktivní USB-C na DisplayPort 1.4, 8K60Hz DSC1.2 HDR HBR3

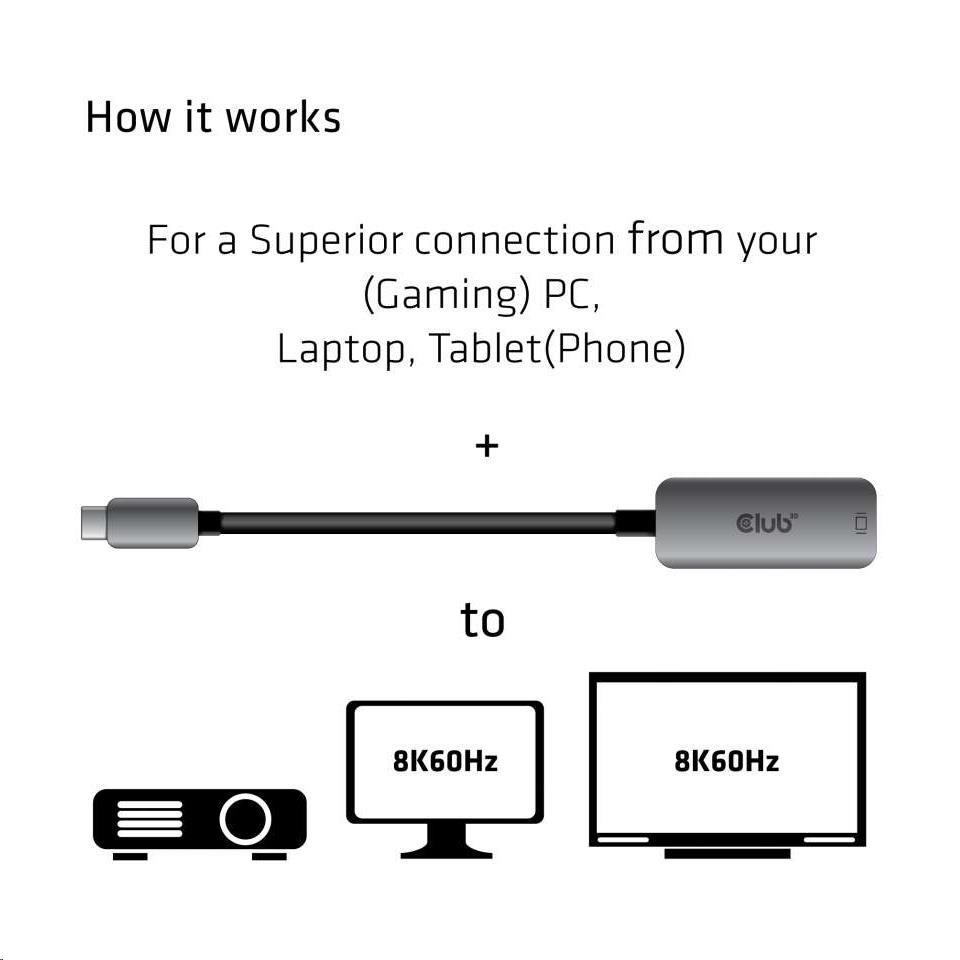

CAC-1567 - The Club 3D USB Type C to DisplayPort™ 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort™ display at max 8K60Hz resolution and HDR support.
This Adapter also works with those VR glasses which require 3.3V support.
It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thunderbolt™ 3 host, this product transmits DP signal.
The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 34AWG and Uni-Directional.
Features
- Supports USB Type C input and DisplayPort™ output

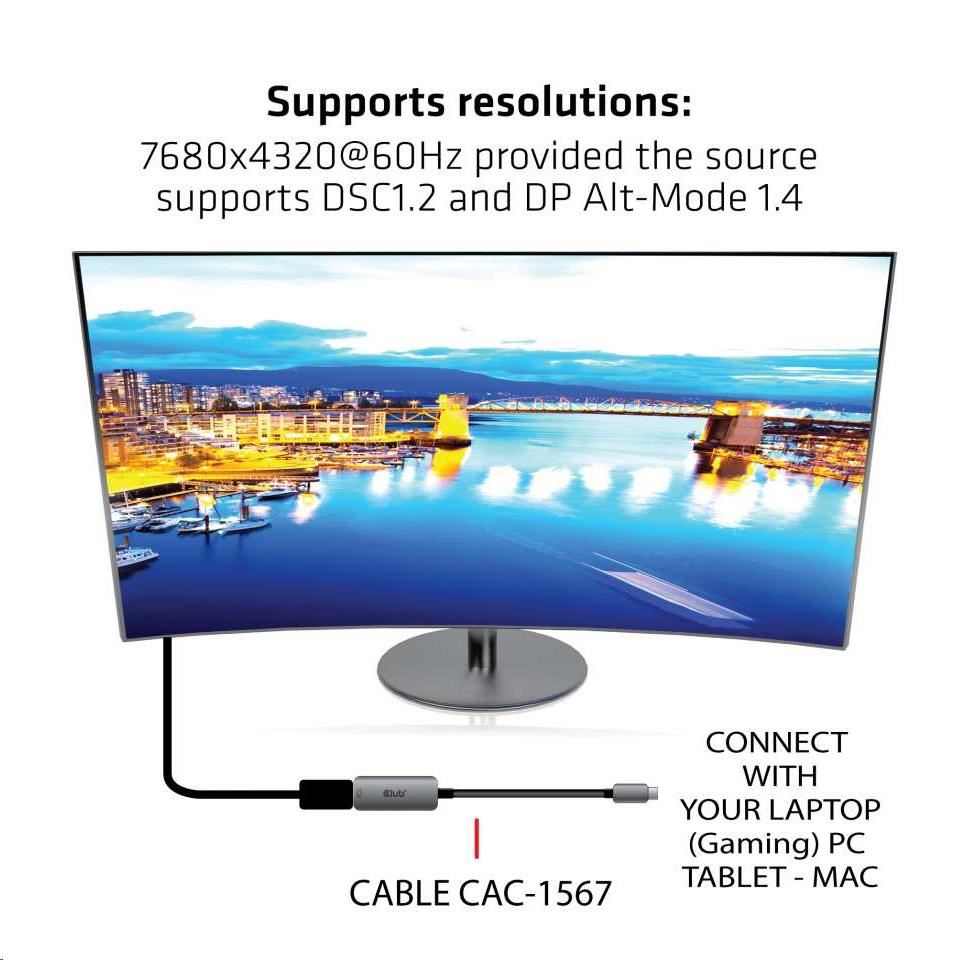

- Supports DisplayPort™ resolutions up to 7680x4320@60Hz HDR, provided the source supports DSC1.2 and DP Alt-Mode 1.4
- Supports DisplayPort™ 1.4/1.2 Alt mode
- Support for 3.3V VR glasses
- Compliant to Thunderbolt 3 specifications
- Supports per lane data rates of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
- Support up to 48 bit (16bit per channel) deep color
- Supports content protection of HDCP1.4 & HDCP 2.2
- USB bus power (no external power supply)
TECHNICAL SPECIFICATIONS
| Product Series | Adapter |
| EAN | 8719214471460 |
| OS Support | All |
| Input | USB Type C male |
| Output | DisplayPort™ 1.4 female |
| Box contents | Active Adapter |

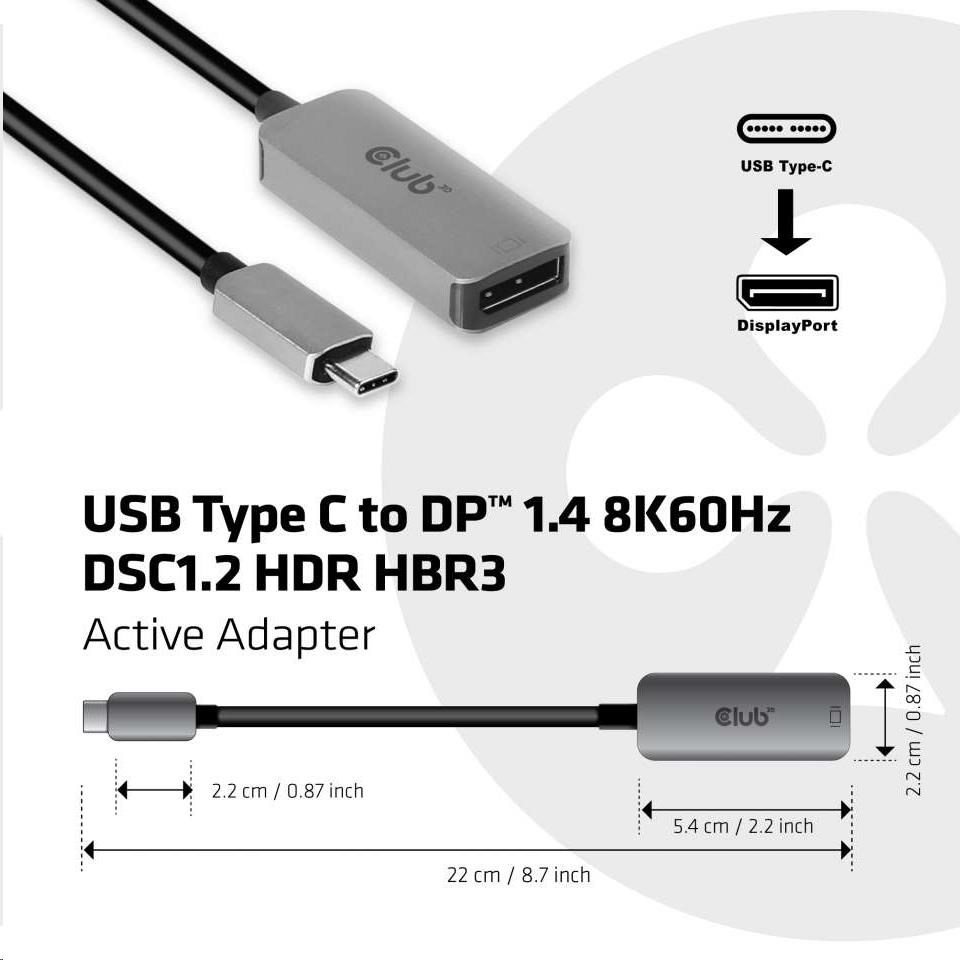

| Cable size | 22 cm |
| Total weight | 74 g |
| USB Type C Male connector | 2.2 x 0.7 x 1.3 cm |
| DisplayPort Female connector | 5.4 x 1.1 x 2.2 cm |
| Certifications | Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
