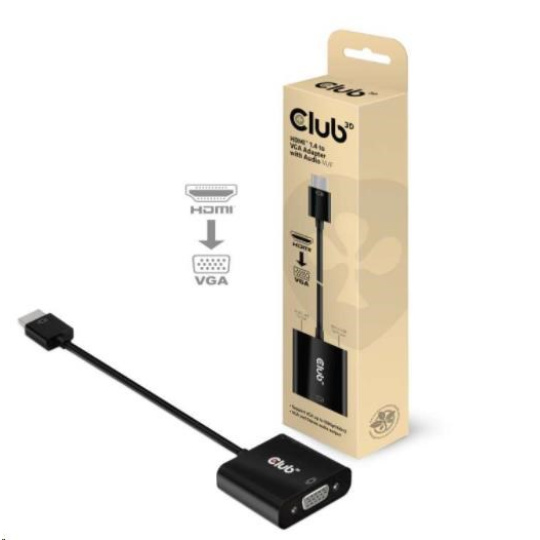

Club3D Adaptér HDMI 1.4 na VGA (M/F), Active with audio
HDMI 1.4 to VGA Adapter with Audio M/F

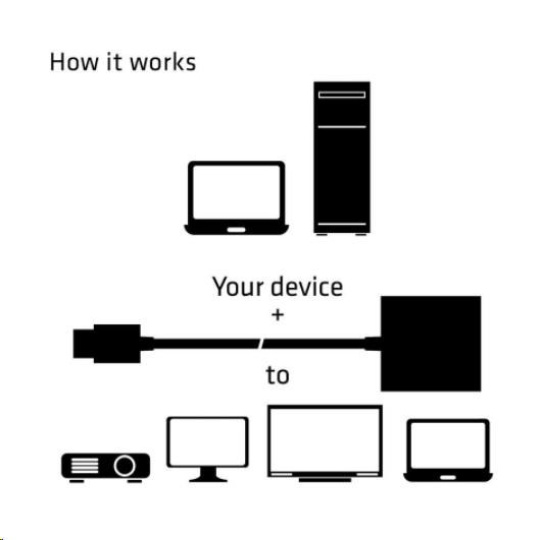

The Club 3D CAC-1302 is an active HDMI™ 1.4 to VGA signal converter. It allows you to convert digital HDMI™ signal into analog VGA signal and extracts audio signal from HDMI™ signal through the R/L audio port.

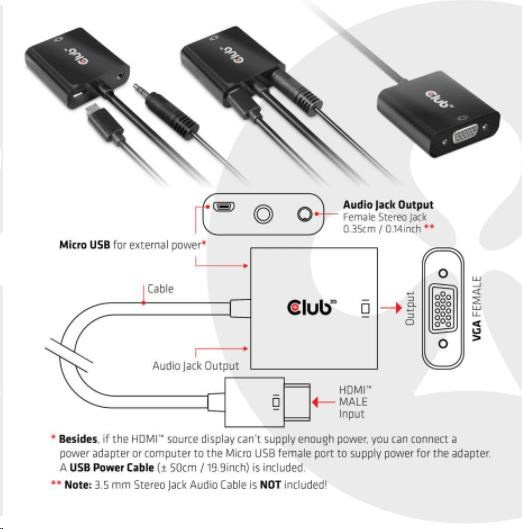

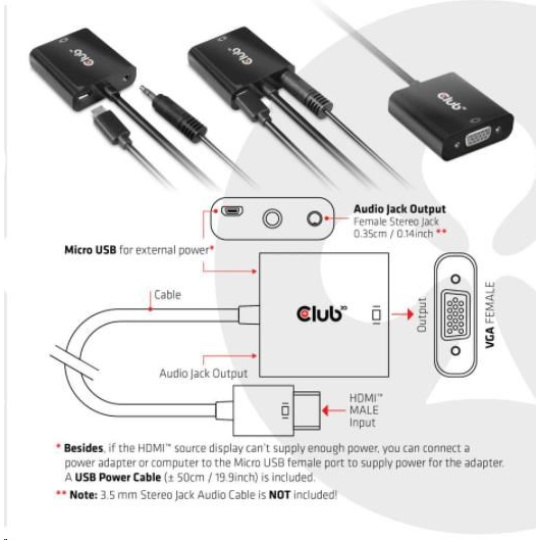

Besides, if the HDMI™ source display can’t supply enough power, you can connect a power adapter or computer to the Micro USB female port to supply power for the adapter.
This product has many features that enable it to perform in a superior manner. Among those features you will find:
- Support HDMI™ A and Micro USB input, VGA and Stereo audio output
- Support HDMI™ resolutions up to 1080p@60HZ, HDMI™ Bandwidth 165MHZ/1.65Gbps per channel (4.95Gbps for all channels)

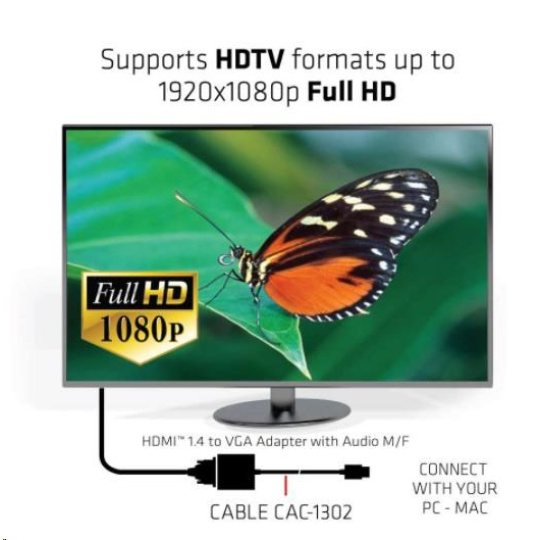

- Support VGA resolutions up to 1080p@60HZ
- Support analog audio format
- Easy to Use: Install in seconds, no need of setting.
- Support HDCP
TECHNICAL SPECIFICATIONS
| OS Support | All |

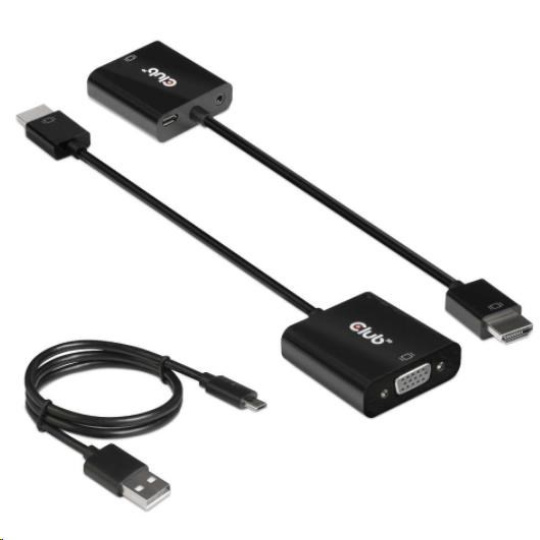

| In the box | - CAC-1302 HDMI™ 1.4 to VGA Adapter with Audio (Jack 0.35cm / 0.14inch) - USB Power Cable (± 50cm / 19.9inch) |

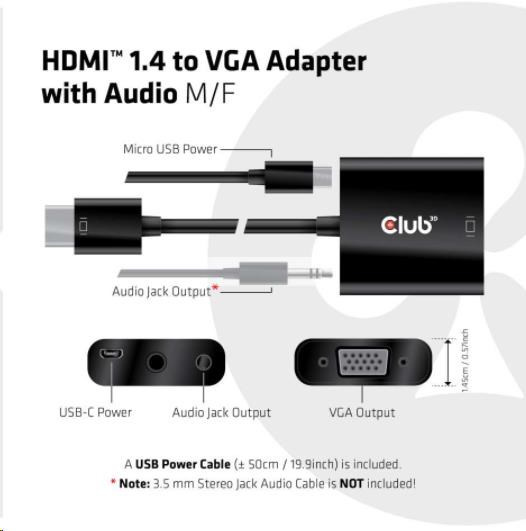

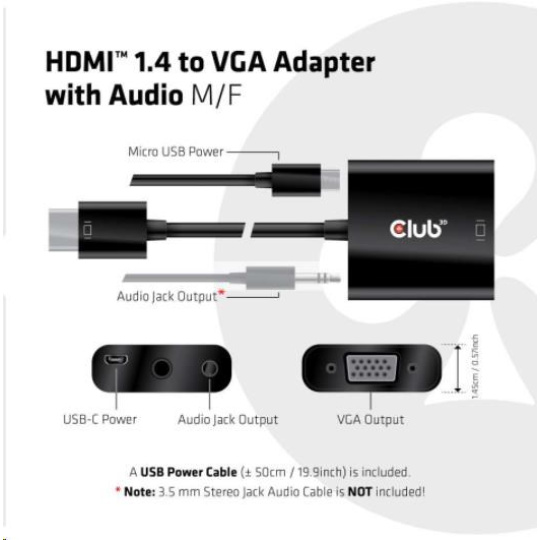

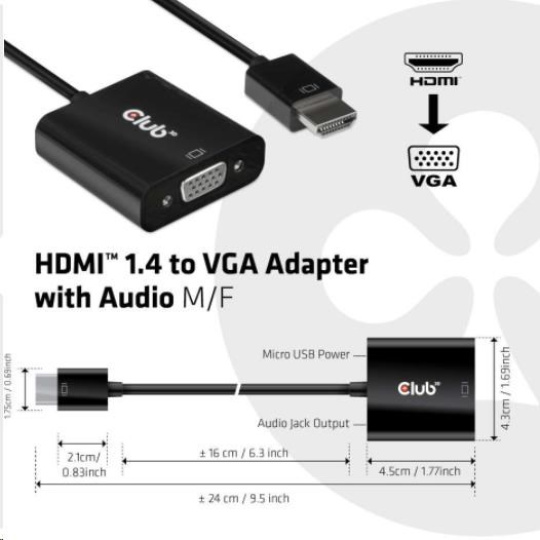

| Available Interfaces | Input: HDMI™ 1.4 Type A, Micro USB Output: VGA and Stereo Audio (analog) |
| Box size | 6 x 24 x 3.5cm / 2.36 x 9.45 x 1.38 inch |
| Device size | 24 x 4.3x 1.45 cm / 9.5 x 1.69 x 0.57 inch |
| Output Cable length approx. | 16 cm / 6.3 inch |
| USB (Power) Cable length approx. | 50 cm / 19.69 inch |
| Connector dimensions | Unit 4.5 x 4.3x 1.45 cm / 1.77 x 1.69 x 0.57 inch |
| Device Weight | 28 gr / 0.99 oz |
| USB Cable Weight | 14 gr / 0.49 oz |
| Box Weight | 28 gr / 0.99 oz |
| LDPE Bag Weight | 6 gr / 0.211 oz |
| Total Weight | 76 gr / 2.68 oz |
.
ParametryPorovnání
Input
HDMI
Output
VGA kabel (D-SUB)
