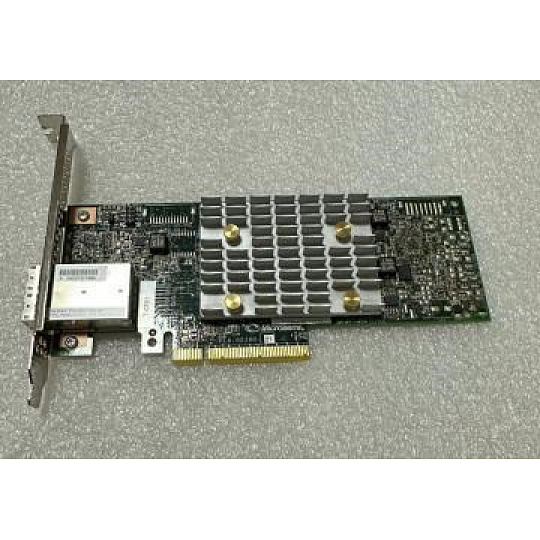

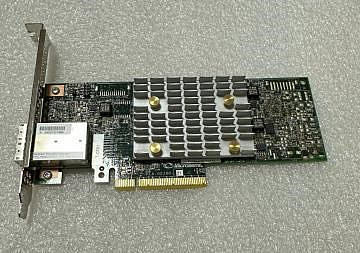

HPE MR416i-p Gen11 16 Internal Lanes/8GB Cache SPDM PCI Plug-in Storage Controller

Name: HPE MR416i-p Gen11 16 Internal Lanes/8GB Cache SPDM PCI Plug-in Storage Controller
SKU: 1578009
Price: 28245 CZK
Availability: InStock

-NaN%

Kód: 1578009

EAN: 4549821443833

Záruka: 12 Měsíc(ů)

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse (0)

HPE MR416i-p Gen11 16 Internal Lanes/8GB Cache SPDM PCI Plug-in Storage Controller

ParametryPorovnání

Technologie serverového řadiče

SAS+SATA+SATA SSD

RAID

Počet kanálů řadiče

Tato položka nebyla doposud diskutována. Pokud chcete být první, klikněte na tlačítko Přidat příspěvek

HPE MR416i-p Gen11 16 Internal Lanes/8GB Cache SPDM PCI Plug-in Storage Controller

HPE MR Gen11 Storage Controllers
A versatile, simplified, and flexible choice for data centers. HPE introduces an expansive and agile PCIe Gen 4.0 storage controller portfolio based on Broadcom® MegaRAID® technology delivering quality, performance, and security for mission-critical applications. Key Features Standard PCI HH/HL and OCP NIC 3.0 form-factors Mixed Mode (RAID and/or JBOD) supporting RAID 0,1,10,5,50,6,60 (MR416i) or RAID 0,1,10 (MR216i) Up to 13.7 GBs of bandwidth, 3M Random Read IOPs, and 240K RAID5 Random Write IOPs 8 PCIe 4.0 host lanes 72b DDR4-2666 4GB (MR408i) or 8GB (MR416i) Flash-Backed Write Cache (energy pack is optional) 8 (MR408i) or 16 (MR416i) tri-mode NVMe, SAS, SATA internal lanes 16Gbs NVMe, 12Gbs SAS SSD/HDD, 6Gbs SATA SSD/HDD Up to 16 drives without expander DMTF Security Protection Data Model (SPDM) supports certificate-based authentication with HPE iLO6. Hardware Root of Trust (HWRoT) protects against malicious firmware Self-Encrypting Drives (SED) for data at rest encryption Windows, Linux, and VMWare MRSA, StorCLI, UEFI, and Redfish Management FASTPATH® (SSD acceleration) Online firmware updates for controllers, backplanes, and drives
Models
HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller	P47777-B21
HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller	P47781-B21
HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller	P47785-B21
HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller	P47789-B21
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller	P58335-B21
Notes: An HPE Smart Storage energy pack (available in both battery and hybrid capacitor options) is optional with the HPE MR416i-o Gen11 and HPE MR416i-p Gen11 storage controller. See below for energy pack options.

Standard Features
Description	HPE MR416i-p Gen11 SPDM Storage Cntlr	HPE MR416i-o Gen11 SPDM Storage Cntlr	HPE MR216i-p Gen11 SPDM Storage Cntlr	HPE MR216i-o Gen11 SPDM Storage Cntlr	HPE MR408i-o Gen11 SPDM Storage Cntlr
SKU	P47777-B21	P47781-B21	P47785-B21	P47789-B21	P58335-B21
Ports	2x8 SlimSAS	2x8 LP SlimSAS	2x8 SlimSAS	2x8 LP SlimSAS	1x8 LP SlimSAS
Storage Lanes	x16	x16	x16	x16	X8
ASIC	Broadcom Aero	Broadcom Aero	Broadcom Aero	Broadcom Aero	Broadcom Aero
Form Factor	PCI HH/HL	OCP NIC 3.0	PCI HH/HL	OCP NIC 3.0	OCP NIC 3.0
Host Interface	PCIe Gen 4.0 x8 host	PCIe Gen 4.0 x8 host	PCIe Gen 4.0 x8 host	PCIe Gen 4.0 x8 host	PCIe Gen 4.0 x8 host
Cache Size (FBWC)	8GB	8GB	N/A	N/A	4GB
Read Ahead Caching
Write-back Caching			-	-
Storage Protocol	16Gbs NVMe, 12Gbs SAS, 6Gbs SATA	16Gbs NVMe, 12Gbs SAS, 6Gbs SATA	16Gbs NVMe, 12Gbs SAS, 6Gbs SATA	16Gbs NVMe, 12Gbs SAS, 6Gbs SATA	16Gbs NVMe, 12Gbs SAS, 6Gbs SATA
Max Drives	16	16	16	16	8
Max Volumes	64	64	64	64	64
RAID:	0,1,5,6,10,50,60	0,1,5,6,10,50,60	0,1,10	0,1,10	0,1,5,6,10,50,60
Mixed Mode: (RAID & HBA)

Feature	Description
SSD Accelerator	FASTPATH
Array Features	Expand Array Move Drives Shrink Array Spare Management
Volume Features	Expand Logical Drive Instant Secure Erase Migrate RAID/Stripe Size Modifying Cache Write Policy Move Logical Drive Re-enable Failed Logical Drive Load balancing Configurable stripe size up to 1 MB Fast initialization for quick array setup Check consistency for background data integrity Patrol read for media scanning and repairing Rebuild
Other Features	Auto resume after loss of system power during array SSD support with SSD Guard^TM technology DDF compliant Configuration on Disk SSD Wear Gauge SMART Predictive Drive Failure Global and dedicated Hot Spare with Revertible Hot Spare support: Automatic rebuild Enclosure affinity Emergency SATA hot spare for SAS arrays Enclosure management: Universal Backplane Management (UBM) Shield state drive diagnostic technology SED Key Management (HKM, LKM, and RKM) DRAM ECC detects and corrects data bit errors.
HPE OneView Support	Monitored Mode
Kit contents	Includes storage controller, information card, warranty statement, and backup power cable (MR408 & MR416)

Optional Accessories for HPE MR408i-o / MR416i-o / MR416i-p Gen11 SPDM Storage Controllers
	Energy pack Options Sold Separately
	HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit	P01366-B21
	HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit	P01367-B21
	HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit	P02377-B21
	HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit	P02381-B21
	Notes: An HPE Smart Storage energy pack is optional Moving volumes or SED locked drives between SR and MR controllers is not supported.

	Warranty The warranty for this device is 3 years parts only. Warranty Upgrade Options Response - Upgrade on-site response from next business day to same day 4 hours. Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days. Duration - Select duration of coverage for a period of 1, 3, or 5 years. Warranty upgrade options can come in the form of HPE Pointnext operational, which are sold at the HPE System level to which this product attaches.

	Operating System Support
	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESXi Canonical Ubuntu CentOS Notes: HPE MR Gen11 Storage Controllers supports the server operating systems. For more information on HPE's server operating systems and virtualization software, please visit: http://www.hpe.com/info/ossupport
